Isco 2150 Area Velocity Flow Meter Manual: Setting Up Submerged Acoustic Doppler Sensors for Open Channel Sewers
Quick Answer: The Isco 2150 area velocity flow meter uses a submerged acoustic Doppler sensor for velocity and a pressure sensor for level in open channel sewers. A reliable setup needs a straight channel section, a clean sensor face, correct zero calibration, and accurate channel dimensions. Silver Instruments supplies full pipe electromagnetic and ultrasonic flow meters for sewage sites, with direct support for Southeast Asia, the Middle East, and Latin America.
Engineers who search for the Isco 2150 area velocity flow meter manual usually have one task. They need to install, calibrate, or repair a flow point in a partially full sewer. The meter is built for open channel flow, not full pipe flow. In practice, we see this unit in municipal wastewater plants, combined sewer overflow chambers, and industrial effluent channels. The method is simple. The sensor measures velocity and level. The flow module calculates flow rate from area and velocity. Most setup errors come from installation site and zero calibration.
What the Isco 2150 Measures in Open Channel Sewers
The velocity sensor uses continuous wave Doppler. It sends an acoustic signal into moving water. Small particles and bubbles reflect the signal back. The meter reads the frequency shift and converts it to velocity. The level sensor reads hydrostatic pressure. The flow module calculates wetted area from the channel shape and level. For a round pipe, the area formula uses pipe diameter and water level. For a rectangular channel, it uses channel width and level. The Isco 2150 stores the site geometry in the flow module. It can output 4-20 mA and Modbus.
We have seen this on customer sites many times. The meter itself is reliable. The weak points are sediment, grease, air bubbles, and bad location. A clean acoustic window is critical. An air bubble stuck on the sensor face can reduce velocity reading by 20 percent or more. Most engineers skip this part until the reading drifts.
Site Selection Before You Mount the Sensor
Pick a straight section of channel. Avoid bends, drops, pump discharges, and confluences. Because these create turbulence and air bubbles. A wastewater plant in Vietnam once placed the probe 2 m downstream from a pump discharge. The velocity read 30 percent high due to bubbles and turbulence. The team moved the sensor 12 m downstream to a straight run. The reading stabilized within one hour.
In most field installations, place the probe at least 5 times the channel width from a bend or drop. In a 600 mm sewer pipe, that means 3 m of straight run before the sensor. In a 1.5 m rectangular channel, use 7.5 m. Keep the sensor face below the minimum water level and at least 50 mm above the sediment bed. The acoustic window should face upstream or downstream, not sideways. Check the cable marking. If the sensor is installed backwards, the flow may read negative.
Submerged Acoustic Doppler Sensor Setup Sequence
Step 1. Mount the probe on a stainless steel band or bracket. For a 300 mm pipe, use a band that fits the invert. Do not use plastic cable ties in a sewer.
Step 2. Zero the pressure sensor. Do this in still water or dry conditions. Enter the actual water level from a staff gauge. A wrong zero gives a constant level error across the range.
S
Step 4. Confirm velocity direction. The Doppler sensor reads positive flow away from the sensor face. If the cable is reversed, change the flow direction setting or flip the sensor.
Step 5. Run a field check with a portable velocity meter. Compare readings at low flow and high flow. The Isco 2150 can output 4-20 mA to a controller. If the site wants HART, a separate transmitter is often needed. Some plants use a PT100 for water temperature correction.
Where Silver Instruments Fits for Sewage Flow Measurement

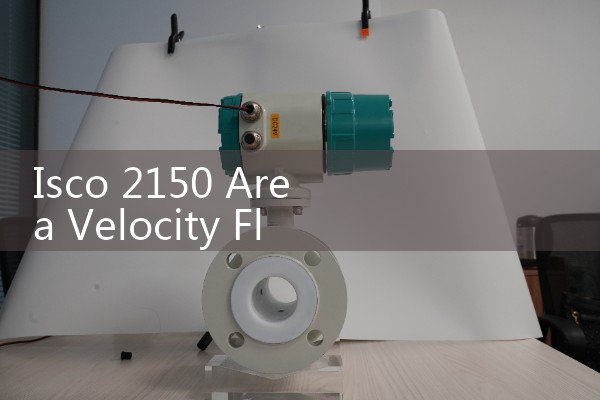

Silver Automation Instruments works with distributors and end users in Southeast Asia, Oceania, Latin America, Africa, and the Middle East. We do not sell the Isco 2150. But we supply full pipe electromagnetic flow meters, ultrasonic flow meters, and pressure transmitters for sewage treatment plants. In a full pipe sewage line, an electromagnetic flow meter with PTFE lining and 316L electrodes works well. Sizes run from DN15 to DN2000. Output options include 4-20 mA HART, pulse, and RS485.
For a sludge line at 40 °C with 2 percent solids, we often quote a DN50 or DN80 electromagnetic flow meter. Conductivity must be above 5 µS/cm for electromagnetic measurement. In a chemical dosing line, a DN10 or DN15 meter with 4-20 mA HART and PTFE lining is common. A contractor in Chile ordered 12 electromagnetic flow meters for a sewage treatment plant upgrade. They sent pipe size, flow range, and pressure. We shipped DN150 and DN200 meters with IP68 remote sensors.
For open channels, we can recommend local area velocity partners. We do not force a full pipe meter into an open channel application. Send us your channel width, flow range, and wastewater type.
FAQ: Isco 2150 Setup and Alternatives
Question 1. Can the Isco 2150 measure flow in a full pipe?
No. It is designed for open channel or partially full pipe flow. In a full pipe, use a full pipe electromagnetic flow meter from Silver Instruments.
Question 2. How often should I clean the acoustic Doppler sensor in a sewer?
In raw sewage, clean the sensor face every 7 days. In industrial effluent with high grease, clean every 3 days. Use water and a soft brush.
Question 3. What is the minimum water depth for the Isco 2150?
The sensor needs at least 25 mm of water above the sensor face for stable velocity. Check the manual for the exact dead band.
Question 4. Can Silver Instruments supply a direct replacement for the Isco 2150?
We do not make a direct drop-in replacement for the Isco 2150. But we supply open channel ultrasonic level sensors and full pipe electromagnetic flow meters for sewage.
Question 5. What information do I need for a quote?
Send us the pipe size (DN), flow range (m3/h), pressure (bar), temperature (°C), and sewage solids content (mg/L). We will reply with a model and price within 24 hours.
Send us your pipe size (DN), flow range (m3/h), pressure (bar), temperature (°C), and sewage solids content (mg/L). Our engineers will recommend an electromagnetic flow meter, ultrasonic flow meter, or pressure transmitter for your sewage site. You can reach Silver Instruments at Tel: +86-135-1213-1526, WhatsApp: 86-135-12131526, WeChat: +86 13512131526.
