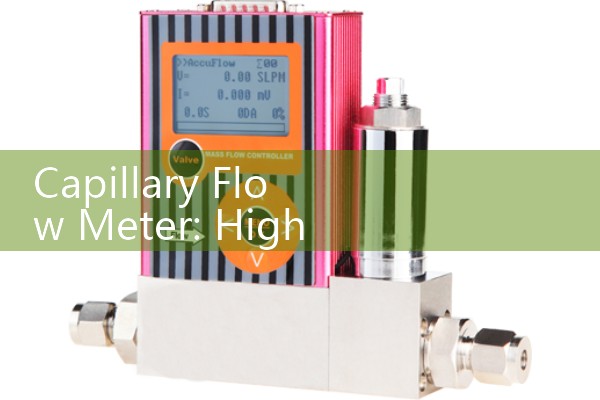

Capillary Flow Meter: High-Precision Gas Sizing for Miniature Cleanroom Lines
Quick Answer: A capillary flow meter measures gas mass flow directly in small cleanroom tubing from 0.1 sccm to 50 slpm. Silver Automation Instruments supplies capillary thermal mass flow meters with 4-20 mA HART and RS485 Modbus output for 1/8 inch, 1/4 inch, and 6 mm OD lines. These meters do not need long straight runs and they fit tight gas panels in semiconductor and pharmaceutical cleanrooms.
Why Standard Gas Meters Miss the Mark on Miniature Lines
Most industrial thermal mass flow meters are built for DN15 to DN50 process pipes. A cleanroom gas panel is different. The lines are small. Here is the thing. A standard DN15 meter cannot fit a 6 mm OD tube without adapters that add leak points. Glass tube rotameters look simple, but below 5 percent of scale they are not repeatable. A capillary flow meter solves this because the full gas stream passes through a small sensor path. There are no moving parts. That matters when a tool builder cannot stop a nitrogen purge line for maintenance every month.
Sizing Parameters That Decide the Model
Send five values with any capillary flow meter inquiry. The first is gas type. Nitrogen, argon, helium, forming gas, and clean dry air all have different thermal properties. The second is full scale flow in sccm or slpm. The third is inlet pressure in bar. The fourth is gas temperature in °C. The fifth is tube outer diameter in mm plus fitting type. Compression fittings suit 6 mm and 1/4 inch OD tube. VCR fittings suit semiconductor gas sticks because they seal metal to metal. In practice, most engineers skip volumetric unit debates and specify mass flow directly. That avoids errors between normal and standard reference conditions.
Silver Instruments Models for Cleanroom Gas
For 0.1 to 10 sccm, use the Silver Instruments SI-2010. Accuracy is ±1.0 percent of reading. Repeatability is ±0.2 percent of full scale. Wetted parts are 316L stainless steel and PTFE. Maximum pressure is 10 bar. Process connections are 1/8 inch compression or VCR. For 10 sccm to 1 slpm, use the SI-2020. This model fits 1/4 inch compression and 1/4 inch VCR. For 1 to 50 slpm, use the SI-2050. It adds a larger sensor path for 6 mm OD lines and supports 4-20 mA HART plus RS485 Modbus RTU on the same board. All three models accept 24 VDC power.
Mass Flow Units and Gas Conversion
Do not specify volumetric flow without pressure and temperature. Ten sccm means standard cubic centimeters per minute at 0 °C and 101.325 kPa. Some cleanroom tool builders use normal liters per minute at 20 °C. The difference is about 7 percent. Silver Instruments can calibrate the SI-2010, SI-2020, and SI-2050 to standard or normal reference conditions. Thermal mass flow meters measure mass directly, so a nitrogen calibration will not read correctly for helium unless a conversion factor is applied. The onboard electronics store up to 10 gas curves. Engineers can switch gas curves over RS485 Modbus. This saves time on m
Pressure Drop and Fitting Choice
Pressure drop is low on capillary based meters. At 1 slpm nitrogen, the SI-2020 shows less than 5 mbar drop across the flow body. Many cleanroom purge designs set a 50 mbar total drop budget. A low drop leaves room for filters and check valves. Choose compression fittings for 6 mm and 1/4 inch OD tube. Choose VCR fittings for gas sticks that must meet helium leak rates below 1E-9 mbar.L/s. Silver Instruments pre-tightens VCR glands on request. Do not use PTFE tape on VCR threads. It adds no seal and can shed particles into a cleanroom line.
What We Have Seen on Customer Sites
A semiconductor equipment assembler in Penang, Malaysia replaced glass tube rotameters on 0.25 inch PFA nitrogen purge lines with SI-2020 meters. The old rotameters drifted more than 15 percent after eight weeks. The new meters held repeatability within 0.2 percent of full scale for six months without recalibration. A customer in Ho Chi Minh City uses SI-2010 meters for argon backfill in optical component sealing. A pharmaceutical isolator line in Bangkok installed six SI-2050 units for clean dry air pressure hold testing. We have also sent standard models to a biotech cleanroom in Mexico and a nitrogen generator packager in the UAE.
Output and Integration Notes
These capillary flow meters run on 24 VDC. Output options are 4-20 mA HART, RS485 Modbus RTU, and pulse. The 4-20 mA signal maps directly to mass flow. No separate pressure transmitter is needed for simple cleanroom gas lines. The meter stores total flow in onboard electronics. ATEX Zone 1 and Zone 2 housings are available for solvent vapor areas. Most models need less than 10 pipe diameters of straight run after an elbow. Response time is under 500 ms for most ranges. That is fast enough for gas box interlock logic.
Five Questions Engineers Ask Before Buying
What is the minimum flow range?
The SI-2010 starts at 0.1 sccm full scale. Below that, a specialized low flow calibration may be needed.
Can it handle corrosive gases?
Standard wetted parts are 316L stainless steel and PTFE. For HCl or silane, give Silver Instruments the gas name and concentration before ordering.
Does it need a long straight run?
No. Most capillary flow meters need less than 10 pipe diameters of straight run. This matters in tight cleanroom gas panels.
What output fits a PLC?
Use 4-20 mA HART or RS485 Modbus RTU. Both are available on the same electronics board.
What is the typical lead time?
Standard SI-2010, SI-2020, and SI-2050 models ship in 7 to 10 working days from Nanjing. Custom flow ranges add about 5 days.
For a price quote, send Silver Instruments your gas type, full scale flow in sccm or slpm, inlet pressure in bar, gas temperature in °C, tube OD in mm, and fitting type. The technical team will return a datasheet and quotation within 24 hours. Call +86-135-1213-1526 or WhatsApp 86-135-12131526. WeChat: +86 13512131526.
