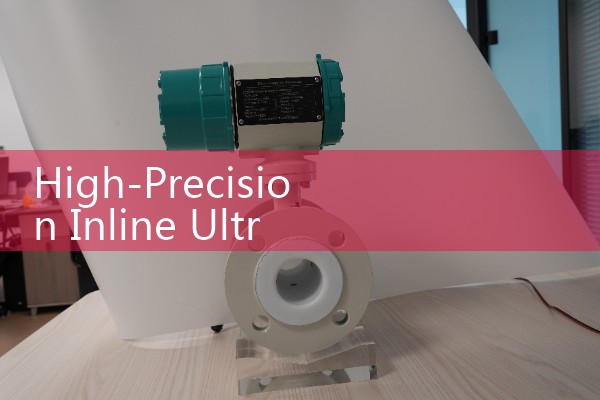

High-Precision Inline Ultrasonic Flow Meter Solutions for Clean Fluids
Quick Answer: Inline ultrasonic flow meters deliver high accuracy (typically ±0.5 % of reading) for clean, low-viscosity fluids without any moving parts. They work well for water, chemicals, and pure liquids where magnetic flow meters struggle due to low conductivity. Send Silver Instruments your flow range, pipe size (DN), and fluid type for a specific model recommendation and price.
A reliable inline ultrasonic flow meter is a solid choice when you need high precision for clean fluids. These meters measure flow using transit-time technology. Two ultrasonic transducers send signals through the fluid. The difference in travel time gives the velocity. Because there are no moving parts, maintenance stays low. You do not need to cut the pipe for clamp-on models. But inline spool-piece designs give the best accuracy and repeatability. Many engineers in water treatment and chemical plants prefer this setup.
Silver Automation Instruments supplies inline ultrasonic flow meters that suit a long list of clean fluids. Think demineralized water for power plants, ultrapure water for semiconductor fabs, chilled water for HVAC, or solvents in paint manufacturing. These meters handle liquids with low conductivity. Traditional electromagnetic flow meters need a minimum conductivity of 5 µS/cm. Clean water often falls below that. The ultrasonic approach solves this problem without special liners or electrodes.
Here is the thing: not all inline ultrasonic meters are equal. Accuracy depends on the flow profile. A straight pipe run upstream and downstream is critical. We often recommend 10D upstream and 5D downstream. The inline spool meter from Silver Instruments comes with centered transducers and a flow conditioner built in for some sizes. This keeps the uncertainty tight even if your pipe layout is less than ideal. We have seen a food additive plant in Thailand reduce measurement drift by replacing an old turbine meter with our inline ultrasonic model. They measured orange oil flow at 50 L/min. The repeatability improved from ±0.3 % to ±0.1 %.
Common sizes are DN15 to DN200. Larger diameters up to DN600 are possible with clamp-on sensors, but inline spools give the best precision for critical batching. Pressure ratings go up to PN40 for standard units. Higher pressures are available on request. Wetted materials include stainless steel 316L and PTFE or PFA liners for chemical compatibility. Temperature range for standard transducers is -20 °C to 80 °C. High-temperature versions extend to 150 °C. Outputs you will find: 4-20 mA HART, pulse, and RS485 Modbus RTU. Power supply is 24 V DC or 85-265 V AC. The transmitter casing is IP67, with ATEX Zone 1 certification if your site needs it.
One application we know well is measuring filtered water in a desalination plant. A customer in Saudi Arabia needed a meter for the permeate line. The water had virtually zero conductivity. A magmeter was not an option. They installed a DN80 inline ultrasonic flow meter from Silver Instruments. The device measured 120 m³/h with ±0.5 % accuracy. They connected the 4-20 mA signal to their PLC. After two years, the meter still holds its calibration. That kind of stability matters when you bill end users.
For chemical dosing and blending systems, an inline ultrasonic meter can also measure small flows. We offer sizes down to DN6 for pilot plants. The low flow cutoff is around 0.1 m/s. This suits solvents, alcohols, and light oils. Because these liquids are often flammable, we supply Ex-proof transducers. Last year a cosmetic manufacturer in Vietnam ordered three units for a new perfume
Cost is always a factor. Inline ultrasonic flow meters from Silver Instruments sit between low-cost turbine meters and premium Coriolis meters. You get high precision without the high price tag. A typical inline ultrasonic spool meter for clean water costs less than a Coriolis meter of the same size, and installation is simpler. No complex zero-point calibration needed. Just bolt it in and power up. We provide a calibration certificate traceable to national standards.
If you deal with ultrapure water in semiconductor fabs, you know particle shedding is a concern. Inline ultrasonic meters have a straight flow path with no obstructions. That means no rotating parts to generate particles. The PFA liner and stainless steel body ensure system compatibility. We have supplied meters to a wafer fab in Singapore. They monitor UPW return flow. Accuracy matters because it impacts water reclaim rates.
Need to replace an aging variable area meter or a differential pressure orifice plate? The inline ultrasonic solution reduces pressure loss to almost zero. There is no orifice, no venturi. This saves pumping energy. A chemical plant in Mexico switched from orifice plates to our inline ultrasonic meters on six cooling water lines. They reported a 2 % drop in pump power consumption across the network. That saving alone paid off the meters in 11 months.
When you inquire, please provide these details: process fluid name, flow range (min/normal/max), pipe size (DN), operating temperature and pressure, pipe material, required output signals, and hazardous area classification if any. Send this to [email protected]. You can also call us at +86-135-1213-1526 or message us on WhatsApp at 86-135-12131526. Our WeChat is +86 13512131526. A product engineer will reply with a technical proposal and price within one business day.
Frequently Asked Questions
Q: What is the typical accuracy of an inline ultrasonic flow meter for clean fluids?
A: For Silver Instruments inline spool meters, accuracy is ±0.5 % of reading from 0.5 to 10 m/s flow velocity. Repeatability is ±0.15 %. This applies to clean, single-phase liquids with no entrained solids or gas bubbles.
Q: Can an inline ultrasonic meter work with ultrapure water?
A: Yes. Ultrapure water has very low conductivity, so magmeters fail. Inline ultrasonic meters do not need conductivity. They measure the flow via ultrasonic signals, and the smooth wetted path prevents particle contamination. Our PFA-lined options are ideal for semiconductor UPW loops.
Q: What is the minimum pipe straight run required?
A: We recommend 10 pipe diameters upstream and 5 downstream. If space is tight, a flow conditioner can reduce the upstream requirement to 5D. Silver Instruments can include a built-in flow conditioner in the spool piece.
Q: Are these meters certified for hazardous areas?
A: Yes. We offer ATEX Zone 1 and Zone 2 certification for the transmitter and transducer. Intrinsically safe and explosion-proof variants are available. Specify your zone and gas group when you request a quote.
Q: How do I get a price quote for an inline ultrasonic flow meter?
A: Send your fluid parameters, pipe size, flow range, temperature, pressure, and required outputs to [email protected]. Our team will prepare a detailed quotation with a datasheet, delivery time, and shipping cost to your country. We ship to Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
