Gas Flow Meter SCCM Pressure Drop Optimization: Reduce Losses, Save Gas
Quick Answer: For SCCM gas flow applications, pressure drop across the meter directly steals energy and process stability. A thermal mass flow meter with a straight sensor tube often keeps pressure drop below 2 mbar at full scale. Providing your pressure, temperature, DN, and full-scale SCCM to the vendor is the fastest way to get a working solution.
Why Pressure Drop in SCCM Gas Meters Costs More Than You Think
Most engineers focus on accuracy and turndown ratio when selecting a gas flow meter. In practice, a tiny pressure drop at 100 SCCM can destroy a sensitive process. A lab-scale reactor in Malaysia saw fluctuations of 0.3 bar simply because the meter element choked the flow. The root cause was a meter with an internal restriction that the supplier never disclosed.
Gas flow meters for SCCM ranges often work at inlet pressures below 1 bar g. So a loss of 50 mbar can use up 10 percent of your available driving pressure. This loss turns into slower batch cycles, unstable burner flames, or poor sparge control in a bioreactor. Silver Instruments has seen this on customer sites many times in chemical research and food packaging lines across Latin America and Southeast Asia.
Where the Pressure Drop Comes From
You need to think about three zones inside a meter. The inlet connector, the flow sensor element, and any internal bypass or laminar flow element. With meters using a bypass split, the majority of the gas passes through a stack of capillary tubes or a sintered filter. This stack is the main contributor to pressure loss. A thermal mass flow meter with the sensor directly in the main flow path usually has a much simpler gas path and lower permanent pressure loss.
A turbine or a variable area meter on a DN6 line might introduce 20 to 80 mbar at 500 SCCM. A Coriolis meter, while accurate, adds considerable mass and internal tube bends. You might see 100 mbar or more at the same flow. For SCCM nitrogen or CO2, that is too much. Silver Instruments field tests showed that a straight-tube thermal dispersion meter kept the pressure drop to 2.5 mbar at 200 SCCM with an inlet pressure of 1.2 bar a.
How to Optimize Pressure Drop in Your SCCM Application
First, define the minimum available inlet pressure and the maximum allowed pressure drop. A water desalination plant in Oman used argon at 0.6 bar g and needed a flow meter that ate less than 5 mbar at 50 SCCM. They tried a small orifice meter but the permanent pressure loss was 18 mbar. The plant switched to a Silver Instruments STF-100 thermal meter with a 1.5 mm bore sensor tube and solved the problem.
Second, keep the pipe diameter as large as practical up to the meter. A sudden reduction from DN10 to a meter with a 1 mm ID causes a vena contracta pressure loss that is often bigger than the meter itself. Use smooth adapters and avoid multiple step changes right at the process connection.
Here is the thing. Most engineers skip the step of asking the manufacturer for the actual pressure drop curve at the exact SCCM not at the meter’s max range. A meter rated for 0 to 1000 SCCM might show a 10 mbar drop at 1000 SCCM. But what you see at your actual 120 SCCM working flow might be less than 1 mbar. Always get the curve for the gas species you use because the kinematic viscosity of methane versus hydrogen changes the flow profile and the pressure loss.
Selecting Meter Technology for Low Pressure Drop
Laminar differential pressure meters measure volumetric flow through a laminar flow element. Their design intentionally creates a small differential pressure for the sensor to read. Some models can have a permanent pressure loss as low as 1 mbar at 100 SCCM if the element is sized correctly. But because the element is a restriction, you must ask for the permanent pressure loss separately from the differential pressure signal range.
Thermal mass flow meters offer a nearly unobstructed path. A typical STF-3000 series from Silver Instruments uses a reference grade stainless steel sensor tube with an ID of 2.0 mm or 3.0 mm for the 0 to 500 SCCM range. At 500 SCCM nitrogen and 1.0 bar a inlet, the pressure drop stays under 3 mbar. For ultra-low pressure drop, we configure a larger tube and adjust the signal processing. This trade-off slightly

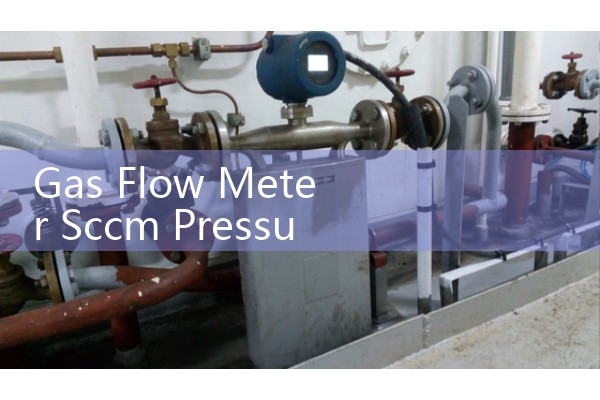

_600x400.jpg)
Coriolis mass flow meters give you direct mass flow but at a price in pressure loss. A DN1 Coriolis sensor might drop 200 mbar at 1000 SCCM. That is acceptable for a high-pressure CO2 supercritical extraction line with a 50 bar supply. For a 0.4 bar biogas research stream, it is not acceptable. Be specific about your inlet pressure.
Examples from the Field
A paint manufacturer in Vietnam needed to monitor solvent vapor mixed with nitrogen at 80 SCCM into an oven. The oven air pressure was near ambient. They tried a small glass tube rotameter but the float flutter gave unreliable data and the pressure drop varied from 12 to 25 mbar. Silver Instruments suggested a STF-200 thermal mass flow meter with an integrated PT100 temperature sensor. The customer reported a stable reading with a permanent pressure loss of 1.8 mbar at 80 SCCM and a supply pressure of 0.5 bar g. This stopped the oven temperature drift.
An LNG research team in Australia required a meter for methane at 0 to 200 SCCM with a maximum pressure drop of 2 mbar at 200 SCCM. They were using a wet test meter but the back pressure caused condensation issues. We supplied a Silver Instruments SGC-05 laminar flow meter calibrated for methane and verified the pressure drop curve at three points. The delivered unit showed 1.2 mbar at 200 SCCM.
In the Middle East, a hydrogen blending station for a gas turbine skid used a bypass thermal meter. The bypass filter caused a 15 mbar loss when dirty. After they switched to an inline thermal meter with a cleanable straight sensor, the loss went below 3 mbar and filter cleaning cycles dropped to once every six months.
Silver Instruments Low Pressure Drop SCCM Flow Meters
We build the STF series for SCCM gas flow from 0.1 SCCM up to 1000 SCCM with a pressure drop that we guarantee in the test report. The standard process connection is 1/4 inch compression fitting or DN6 flange. The wetted materials are 316L stainless steel and Viton or Kalrez seals for aggressive gases. The transmitter output is 4-20 mA HART and Modbus RTU over RS485. An ATEX Zone 1 version is also available for hazardous area gas dosing.
If you need an even lower pressure drop, we can engineer a custom bore sensor tube or a low-differential laminar element. We have done this for helium leak test benches and for biogas researchers in Brazil who cannot afford to pressurize their sample bags above 0.2 bar g.
Request a quote with your real numbers. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range in SCCM. We will return a pressure drop curve for the recommended model within 24 hours.
FAQ
What is a typical pressure drop for a 100 SCCM thermal mass flow meter?
Our STF-100 series at 100 SCCM nitrogen shows a pressure drop between 0.8 and 2.5 mbar depending on the tube size and inlet pressure. We provide the actual value on the calibration certificate.
How do I know if my process can tolerate the pressure drop?
Subtract the meter pressure drop at maximum flow from your available supply pressure. If the remaining pressure at the point of use is still above your required minimum, the meter is viable. We can help you calculate this if you provide the system details.
Does the gas type affect the pressure drop in SCCM meters?
Yes. The pressure drop depends on dynamic viscosity. Hydrogen and helium produce a lower pressure drop than argon or CO2 at the same volumetric SCCM. Always request a gas-specific calibration or a conversion factor from the manufacturer.
Can I use a Coriolis meter for SCCM flow and still keep a low pressure drop?
A Coriolis meter on very low SCCM ranges usually has a small tube I.D. that creates a moderate pressure drop. For inlet pressures above 2 bar, this may be acceptable. For sub-atmospheric or low-pressure gas streams, a thermal meter is almost always better.
What information should I send to get a fast quotation for a low pressure drop gas meter?
Send your gas type, inlet pressure in bar, gas temperature in degrees C, pipe size (DN or inch), flow range in SCCM, and the maximum allowed pressure drop. If you have a data sheet with your process conditions, attach that too.
