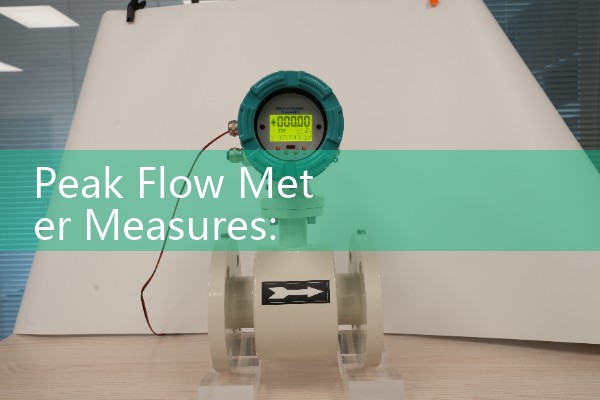

Peak Flow Meter Measures: Understanding Expiratory Flow Rate Data
Quick Answer: In industrial plants, a peak flow meter captures the highest instantaneous gas or liquid flow during startup, shutdown, or emergency relief. For expiratory flow data like compressor blowdown, tank venting, or flare discharge, you need a meter that responds in milliseconds and logs the maximum value. Silver Instruments supplies vortex, thermal mass, and Coriolis meters that deliver this peak data via 4-20 mA HART output, helping engineers validate relief valve sizing, compressor health, and emissions reports without guesswork.
What Expiratory Flow Rate Means in Process Plants
Expiratory flow rate is not just a medical term. On a chemical site or offshore platform, expiratory flow describes the sudden release of gas from a vessel, reactor, or storage tank to the atmosphere or flare system. Think of a nitrogen blanketed tank breathing out during pump-in. Or a natural gas compressor blowdown before maintenance. That burst of gas can last only a few seconds, but the peak flow rate determines whether your downstream scrubber, silencer, or flare tip can handle the load. Most engineers skip this part and rely on conservative calculations. In practice, we have seen installations where the measured peak was 30 percent higher than the design estimate, eroding pipe walls faster than expected.
Meter Types That Capture Short-Duration Peak Flows
Standard differential pressure devices with long impulse lines dampen the transient. You miss the peak. Vortex flow meters, with their bluff body shedding principle, react to velocity changes within a few hundred milliseconds. A DN50 vortex meter from Silver Instruments, fitted with an integrated PT100 and pressure sensor, can output a direct mass peak reading every 100 ms. For dry, clean expiratory flows like instrument air blowdown, thermal mass flow meters give a direct mass peak in kg/h without separate pressure and temperature compensation. Our customers at a paint manufacturer in Southeast Asia use our inline thermal mass meters on each reactor vent line, reading the peak after every batch discharge. Because the meter has no moving parts, the expiratory pulses of solvent-laden air do not foul it. For high-precision expiratory flows with changing gas composition, a Coriolis mass flow meter measures true mass peak directly. We have supplied a DN25 Coriolis meter to a biogas plant in Latin America that captures peak methane vent rates during digester overpressure events. The meter logs the peak value once every 50 ms and holds it until the operator resets.
Silver Instruments Configuration for Peak Data Logging
The electronics matter as much as the sensor. Silver Instruments flow transmitters offer a peak-hold function. This means the 4-20 mA HART signal freezes the maximum flow rate observed during a configurable time window, typically 1 to 10 seconds. You do not need a high-speed PLC to catch the spike. The transmitter does it internally. For hazardous areas, we offer meters certified ATEX Zone 1 or IECEx. The local LCD display on the meter head will show the frozen peak value, so an operator walking the line can record it with a clipboard. No need to open
Common Misapplications That Inflate Peak Readings
One trap is upstream pipe disturbances. A vortex meter installed right after a short radius elbow or a partially opened blowdown valve will see artificially high velocity fluctuations. The meter will report a peak that never really existed. That fake peak can trigger a flare overcapacity alarm and lead to unnecessary shutdowns. Silver Instruments recommends a minimum straight run of 20 x DN upstream for vortex and 10 x DN for thermal mass on expiratory lines. Another trap is condensation. Hot, saturated gas released from a tank suddenly cools in the vent pipe. Water droplets form. A vortex meter will read the mixed phase as a much higher mass peak, giving you a scary but false number. In such cases, we specify a low-pressure Coriolis meter with a heating jacket, or we advise to install the meter upstream where the gas is still above dew point. A customer in West Africa found that his peak flow spikes disappeared after moving the meter 5 meters closer to the tank nozzle.
Frequently Asked Questions
Which meter is best for emergency relief valve expiratory flow testing? A fast-response vortex flow meter with peak-hold and ATEX certification is the most common choice. If the gas is dirty or contains condensate, use a full-bore Coriolis meter. Send us your gas composition and peak relief pressure; we will specify the correct DN.
Can I use a differential pressure meter with an orifice plate? You can, but you will miss the true peak because the impulse lines and transmitter damping average the signal. In practice, the measured peak is often 15 to 25 percent lower than actual.
How do I log peak expiratory data without a DCS? Use a Silver Instruments paperless recorder with a 1-second scan interval. It captures the frozen peak value from the flow transmitter via 4-20 mA and stores it on an SD card with time stamps.
Does ambient temperature affect thermal mass peak readings on vent lines? Yes. Hot expiratory gas in a cold pipe causes zero drift. Our thermal mass meters include an inline RTD gas temperature sensor that corrects for ambient shifts up to 120 degrees C.
What maintenance do peak flow meters need on expiratory service? Vortex meters need an annual check of the vortex sensor and O-ring. Thermal mass probes require cleaning if the gas carries dust. Coriolis meters are virtually maintenance free. We recommend verifying the peak-hold function every 6 months using a handheld calibrator.
Get a Quote With Your Process Data
Tell us your expiratory flow medium, maximum pressure (bar), temperature (°C), pipe size (DN), and required peak flow range (kg/h or m³/h). We will recommend the correct meter model and provide a price and lead time. Email [email protected] or call Tel: +86-135-1213-1526. You can also reach us on WhatsApp: 86-135-12131526 or WeChat: +86 13512131526. Silver Automation Instruments supplies to distributors and end users in Southeast Asia, Oceania, the Middle East, Africa, and Latin America.
