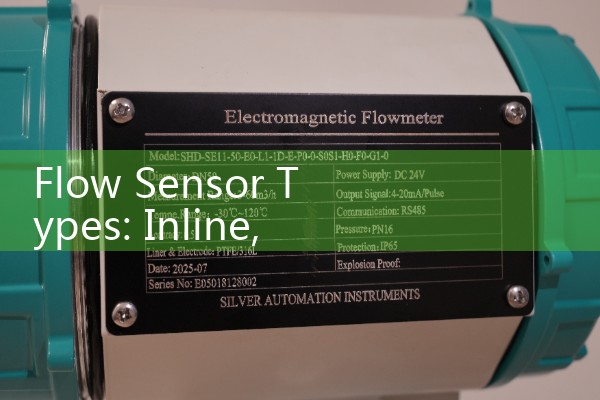

Flow Sensor Types: Inline, Insertion & Clamp-On Designs
Quick Answer
Inline flow sensors deliver the highest accuracy and repeatability for pipes up to DN300, but you must cut the pipe for installation. Insertion flow sensors enter the pipe through a small tap and work best on large lines from DN150 to DN2000 where a shutdown is expensive. Clamp-on sensors mount outside the pipe wall, require zero process interruption, and suit temporary checks or permanent use on hard-to-open lines. Silver Automation Instruments supplies all three designs across Coriolis, electromagnetic, ultrasonic, vortex, thermal mass, and oval gear technologies, so you match the sensor to the budget and the pipe, not the other way around.
Why Mounting Design Changes Everything in a Flow Sensor Project
Many engineers start by looking at flow rate, temperature, and pressure. That is the right instinct. But the way the sensor physically connects to the pipe often decides whether the project stays on budget or blows out in welding, permits, and downtime. A sensor that threads between flanges is a different animal from one that goes in hot-tap through a ball valve. And a sensor that straps onto the outside of a 500 mm GRP pipe spares you from ever touching the process fluid. Here is the thing: we have seen projects where a perfectly good magmeter was spec’d but the shutdown cost made it impossible to install. The job got done with a clamp-on ultrasonic meter instead, delivered from our Melbourne stock in four days.
Inline Flow Sensors: When You Can Cut the Pipe and Want Lab-Grade Accuracy
Inline sensors sit right in the flow stream, usually between a pair of mating flanges or threaded ends. They take full pipe diameter measurement, which gives you the tightest uncertainty—often ±0.1% of rate on a Coriolis meter or ±0.2% on a high-end oval gear meter. For a chemical dosing skid in a Vietnamese water treatment plant, we supplied inline electromagnetic flow meters in DN25 with PTFE lining and titanium electrodes. The conductivity was only 8 µS/cm but the meter locked on perfectly. That is the kind of job where an insertion sensor cannot compete because the low-flow cutoff and profile distortion eat into the accuracy.
Silver Instruments stocks inline flow meters in many technologies. Coriolis mass flow meters (DN15 to DN200) for liquids and gases where you need kg/h, density, and temperature in one device—think palm oil transfer in Malaysia or LPG loading in Indonesia. Electromagnetic flow meters (DN10 to DN300) for any conductive liquid above 5 µS/cm; we use hard rubber liners for seawater and PTFE for acids in the Middle East. Vortex flow meters (DN15 to DN300) for saturated steam at 10 bar and 180°C in Philippine food factories. Thermal mass flow meters (DN15 to DN100) for compressed air and nitrogen, with direct mass reading in Nm³/h. Oval gear positive displacement meters (DN10 to DN150) for diesel, lube oil, and viscous adhesives up to 1000 cP. Every inline sensor leaves our test bench with a 5-point calibration certificate.
Insertion Flow Sensors: The Practical Choice for Big Pipes and Retrofit Jobs
Insertion sensors go into the pipe through a 1½ inch or 2 inch weld-o-let or compression fitting. The sensor tip stays in the flow at a calculated insertion depth, usually 1/8 or 1/2 of the pipe ID. You do not cut out a full pipe section. A contractor in Saudi Arabia saved 14 days of shutdown on a 1000 mm cooling water line by switching from an inline magmeter to an insertion magmeter with a hot-tap valve. The process stayed live, the sensor went in on a Wednesday, and the 4-20 mA signal hit the PLC by Thursday lunch. Accuracy lands around ±1% of reading when installed correctly, which is more than enough for trending, pump control, and leak detection on large diameters.
Our insertion range covers electromagnetic insertion probes for raw water, wastewater, and slurries up to 3% solids. We have supplied them to mining camps in Western Australia where the pipe is 800 mm HDPE and the only access is a single diverter valve. For gas, we offer insertion thermal mass flow meters that handle biogas, flare gas, and compressed air in DN150 to DN1600 pipes. A biogas plant in Thailand runs six of them on 400 mm pipes, with ATEX Zone 2 certifications because the hydrogen sulfide content stays below 3%. You also find insertion vortex meters working on large steam headers, though engineers often need a straight run of 20D upstre
Clamp-On Flow Sensors: Zero Shutdown, Zero Contact, Fast Installation
Clamp-on ultrasonic flow meters strap transducers to the outside of the pipe using acoustic coupling gel and stainless steel bands. The technique works on steel, cast iron, GRP, and PVC pipes from DN15 to DN4000, as long as the pipe wall transmits ultrasound and the fluid has less than 3% entrained gas or solids. A desalination plant in Chile did not want to touch their lined 500 mm GRP brine line, so they mounted a clamp-on meter in under two hours and started logging data. The flow profile was fully developed, repeatability held under ±0.5%, and the total installed cost stayed below what a single flange set would have cost with a crane and a confined-space permit.
We configure clamp-on systems with transducers for standard temperatures up to 200°C and with explosion-proof transmitters for oil and gas zones. The microprocessors handle transit-time and Doppler methods; for clean water, you use transit-time; for aerated fluids with bubbles, Doppler. In practice, we find that about 80% of inquiries need transit-time and a V-mount or Z-mount sensor setup. One important detail: a clamp-on meter reads velocity and multiplies by the pipe area you enter. If you measure the pipe OD and wall thickness with a micrometer and not a rough tape measure, the computed flow stays accurate. We include a pipe thickness gauge in our commissioning kits.
How to Decide Without Overthinking
If the pipe is DN80 and the budget allows a flanged connection, go inline. The accuracy will make your dosing, billing, or custody transfer data bulletproof. If the pipe is DN600 and you cannot shut down, insertion is often the cheapest path to a real measurement, better than a guess. If the fluid is nasty, the pipe is lined, or you need a quick spot check before a full project, clamp-on ultrasonic gives you a working meter without a single weld. But here is what trips people: clamp-on meters need a fully filled pipe and a stable flow profile. Do not trust one on a partially filled drain line at a 3% slope. For that, we would recommend an open channel flow meter instead.
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Mention whether you need a 4-20 mA HART output, Modbus RTU, or a pulse for a batch controller. Our Melbourne warehouse holds inline, insertion, and clamp-on stock for fast shipment across Southeast Asia, Oceania, the Middle East, Africa, and Latin America. We reply with a markup drawing, lead time, and price within a working day.
Frequently Asked Questions
What is the real accuracy difference between inline and insertion flow sensors? Inline meters deliver ±0.1% to ±0.5% of rate on Coriolis and oval gear designs, while a properly installed insertion magmeter gives ±1% to ±2% of reading. The gap widens on low flow or disturbed profiles, so for chemical additive injection always pick inline.
Can a clamp-on ultrasonic flow meter measure on a plastic pipe? Yes, it works on PVC, HDPE, and PVDF when the wall is not too thick and the material transmits ultrasound. We have used clamp-on meters on 160 mm PVC pipes at a water recycling plant in the Philippines with repeatability under 1%.
Do insertion flow meters handle gas service? Insertion thermal mass meters are designed for compressed air, nitrogen, biogas, and natural gas lines from low to medium pressure. They need a stable temperature and composition; a big change in methane content shifts the calibration, so tell us the gas mix upfront.
Which sensor type works for slurry and dirty water? For conductive slurries with up to 3% solids, insertion electromagnetic meters with abrasion-resistant electrodes perform well. Inline magmeters with natural rubber liners also survive mining slurries. Clamp-on ultrasonic typically fails if bubbles or solids exceed 3%.
How fast can Silver Instruments ship a clamp-on flow meter to me? Most configurations are in stock in Melbourne. We ship clamp-on transit-time kits within 3 working days to Southeast Asia and Oceania. Air freight to Lagos, Lima, or Dubai adds 4 to 7 days. Give us your pipe OD and fluid, and we confirm the model right away.
